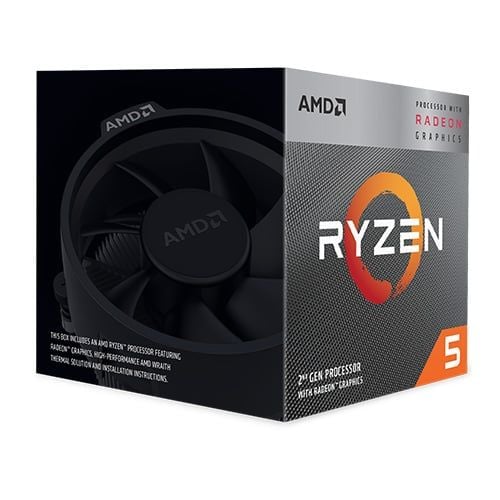

AMD Ryzen 5 3400G
| General Specifications | |
| Name | : AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics |
| Family | : Ryzen |
| Series | : Ryzen 3000 Series |
| Form Factor | : Desktops, Boxed Processor |
| Market Segment | : Mainstream Desktop |
| AMD PRO Technologies | : No |
| Regional Availability | : Global , China , NA , EMEA , APJ , LATAM |
| Former Codename | : Picasso |
| Processor Architecture | : Zen+ |
| # of CPU Cores | : 4 |
| Multithreading (SMT) | : Yes |
| # of Threads | : 8 |
| Max. Boost Clock | : Up to 4.2 GHz |
| Base Clock | : 3.7 GHz |
| L1 Cache | : 384 KB |
| L2 Cache | : 2 MB |
| L3 Cache | : 4 MB |
| Default TDP | : 65W |
| AMD Configurable TDP (cTDP) | : 45-65W |
| Processor Technology for CPU Cores | : 12nm FinFET |
| CPU Compute Die (CCD) Size | : 210mm² |
| Package Die Count | : 1 |
| Total Transistor Count | : 4.94 Billion |
| Unlocked for Overclocking | : Yes |
| CPU Socket | : AM4 |
| Supporting Chipsets | : X570 , X470 , X370 , B450 , B350 , A320 |
| CPU Boost Technology | : Precision Boost 2 |
| Instruction Set | : x86-64 |
| Supported Extensions | : AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | : AMD Wraith Spire |
| Thermal Solution (MPK) | : AMD Wraith Spire |
| Max. Operating Temperature (Tjmax) | : 95°C |
| Launch Date | : 07/07/2019 |
| *OS Support | : Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) | : 0 |
| Native USB 3.2 Gen 1 (5Gbps) | : 4 |
| Native USB 2.0 (480Mbps) | : 0 |
| Native SATA Ports | : 0 |
| PCI Express® Version | : PCIe® 3.0 |
| Native PCIe® Lanes (Total/Usable) | : 20 , 16 |
| Additional Usable PCIe Lanes from Motherboard | : X470 2x Gen 3, 8x Gen 2 |
| NVMe Support | : Boot , RAID0 , RAID1 , RAID10 |
| System Memory Type | : DDR4 |
| Memory Channels | : 2 |
| Max. Memory | : 64 GB |
| System Memory Subtype | : UDIMM |
| Max Memory Speed | : 2x1R DDR4-2933, 2x2R DDR4-2667, 4x1R DDR4-2133, 4x2R DDR4-1866 |
| ECC Support | : Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | : Radeon™ RX Vega 11 Graphics |
| Graphics Core Count | : 11 |
| Total Graphics Shaders | : 704 |
| Graphics Frequency | : 1400 MHz |
| GPU Max. Memory | : 2 GB |
| WDDM Version | : 2.7 |
| DirectX® Version | : 12 |
| OpenGL® | : 4.6 |
| OpenCL™ | : 2.2 |
| DisplayPort™ Version | : 1.4a |
| DisplayPort Extensions | : Adaptive-Sync , HBR3 , HDR Metadata |
| DisplayPort Max Refresh Rates (SDR) | : 3840×2160 @ 60Hz , 3440×1440 @ 144Hz , 2560×1440 @ 180Hz , 1920×1080 @ 240Hz |
| DisplayPort Max Refresh Rates (HDR) | : 3840×2160 @ 60Hz , 3440×1440 @ 60Hz , 2560×1440 @ 60Hz , 1920×1080 @ 120Hz |
| HDMI® Version | : 2.0 |
| HDCP Version Supported | : 2.2 |
| USB Type-C® DisplayPort™ Alternate Mode | : Yes |
| Multi-Monitor Support | : Yes |
| Max Displays | : 3 |
| AMD FreeSync™ | : Yes |
| AMD Eyefinity Single Large Surface (SLS) | : No |
| Wireless Display | : Miracast |
| Max Video Encode Bandwidth (SDR) | : 1080p205 H.264, 1440p115 H.264, 2160p51 H.264, 1080p205 H.265, 1440p115 H.265, 2160p51 H.265 |
| Max Video Decode Bandwidth | : 1080p60 MPEG2, 1080p60 VC1, 1080p240 VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc |
| Product IDs | |
| Product ID Boxed | : YD3400C5FHSBX* |
| Product ID Tray | : YD3400C5M4MFH |
| Product ID MPK | : YD3400C5FHSPK* |
| Security | |
| AMD Enhanced Virus Protection (NX bit) | : Yes |
