Product Name |
Duoface RGB | |
| Case Form Factor | Mid Tower | |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / *E-ATX | |

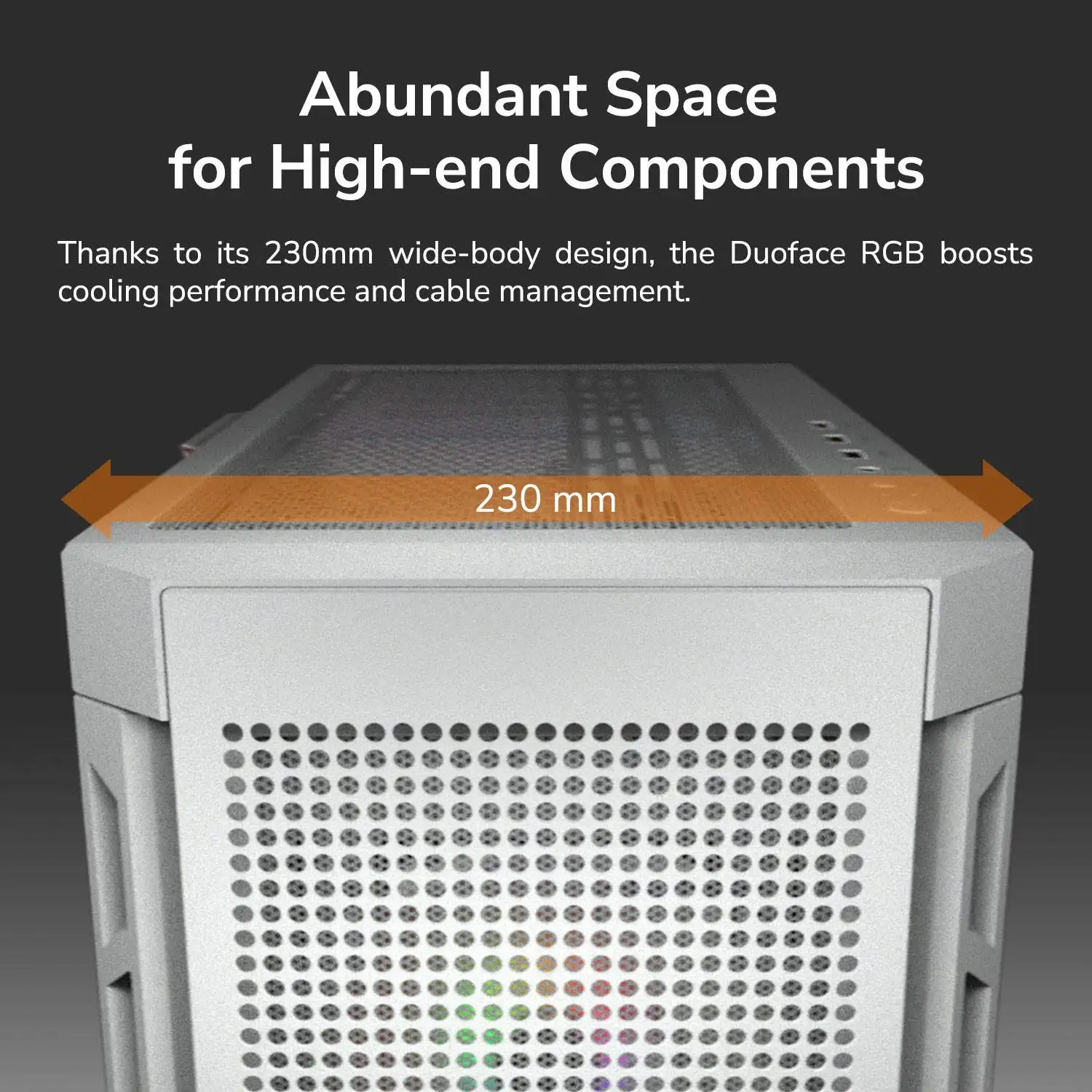

| Dimensions (WxHxD) | 230 x 491 x 386 (mm) | |
| 9.1 x 19.3 x 15.2 (in) | ||
| I/O Panel | USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x1, RGB Button | |
| 3.5″ Drive Bay | 2 | |
| 2.5″ Drive Bay | 2 (2 SSD trays included) | |
| Expansion Slots | 7+3 | |
| Vertical GPU Support | Yes | |
| Cooling Fan Support | Front | 120mm x 2 / 140mm x 2 |
| Top | 120mm x 2 / 140mm x 2 | |
| Rear | 120mm x 1 / 140mm x 1 | |
| Pre-installed Fans | Front | 140mm ARGB fan x 2 |
| Rear | 120mm ARGB fan x 1 | |
| Speed | 1000 RPM | |
| Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) | |
| Maximun Number of Fans | 5 Max. | |

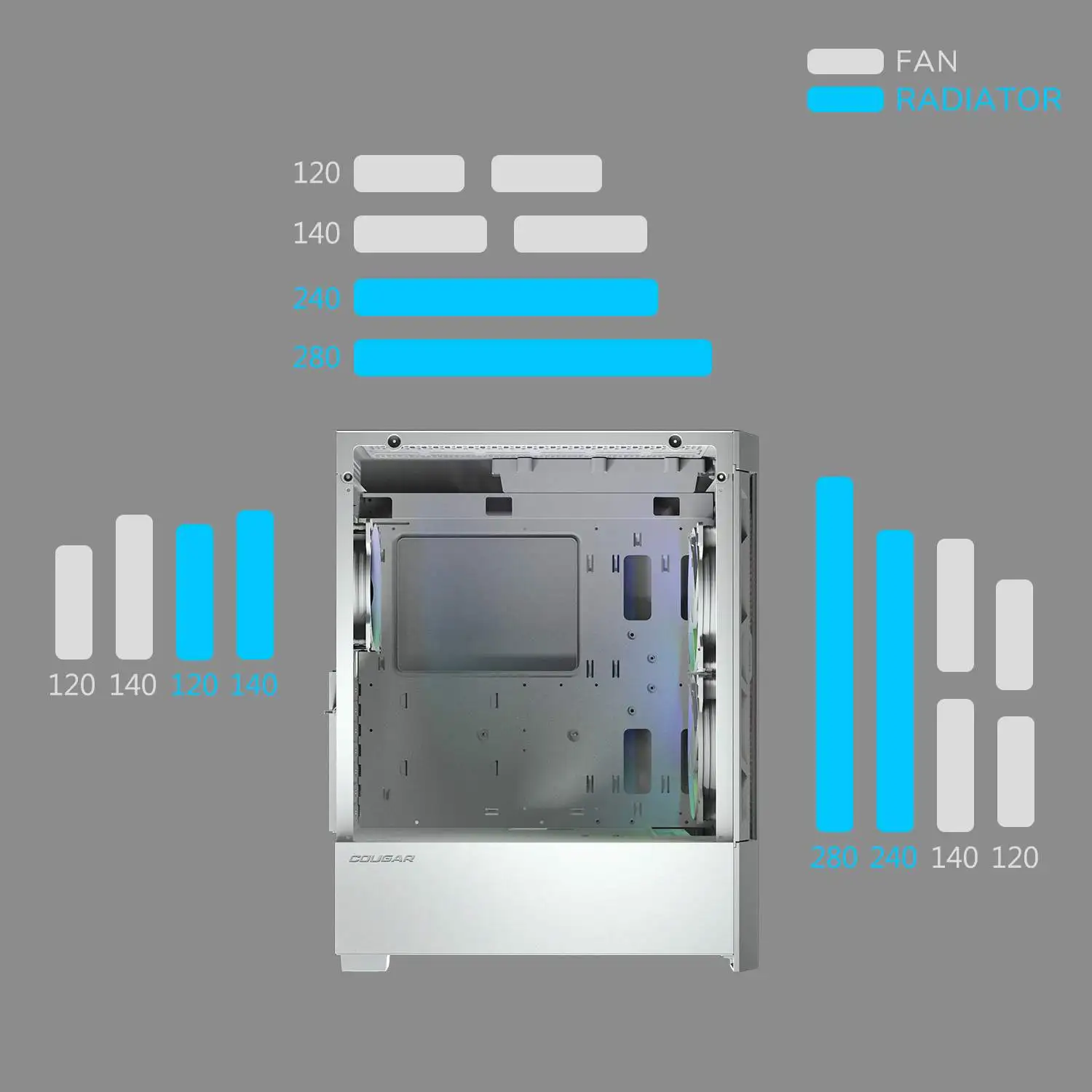

| Water Cooling Support | Front | *280mm / 240mm / 140mm / 120mm |
| Top | *280mm / 240mm / 140mm / 120mm | |
| Rear | 120mm / 140mm | |

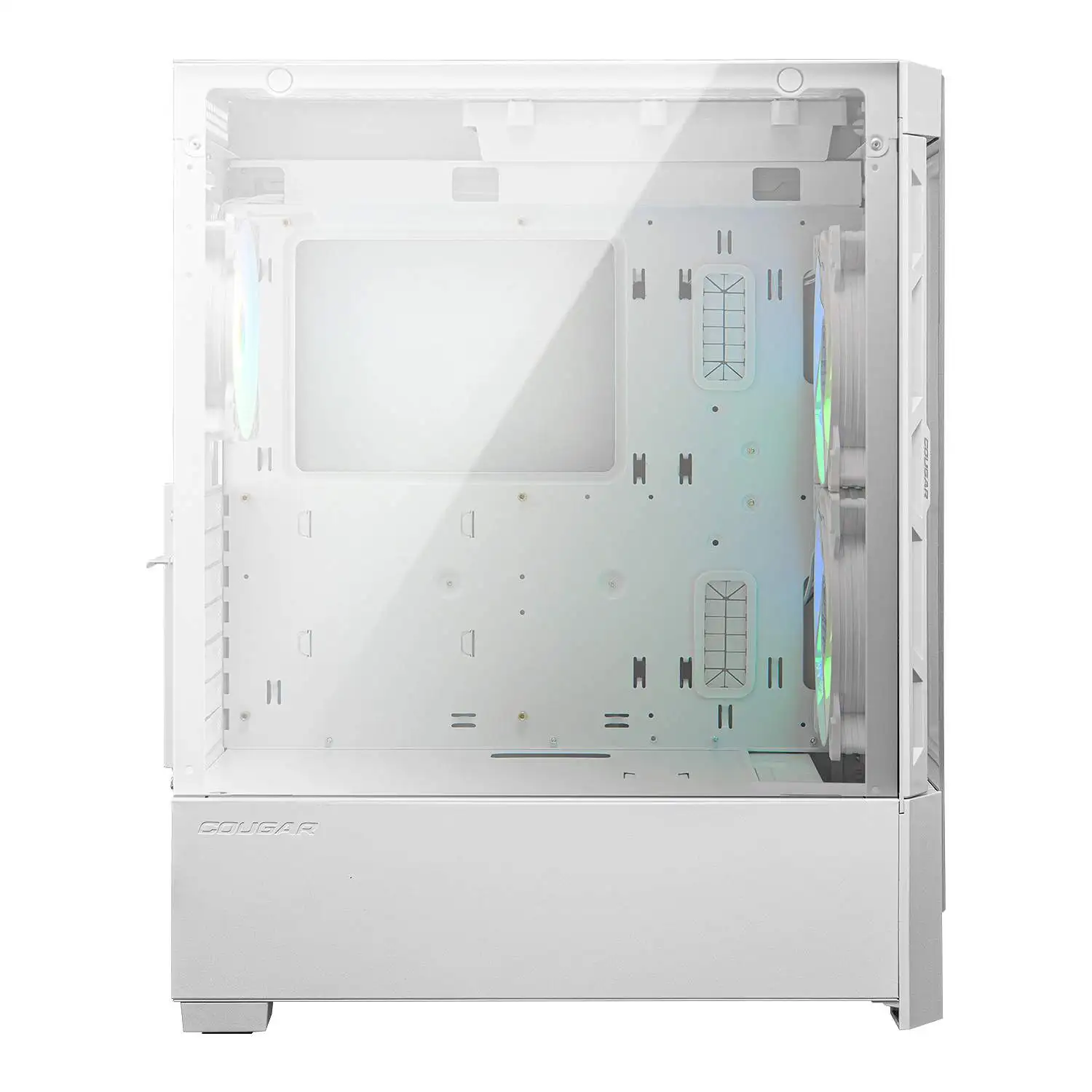

| Transparent Left Panel | 4mm Tempered Glass | |

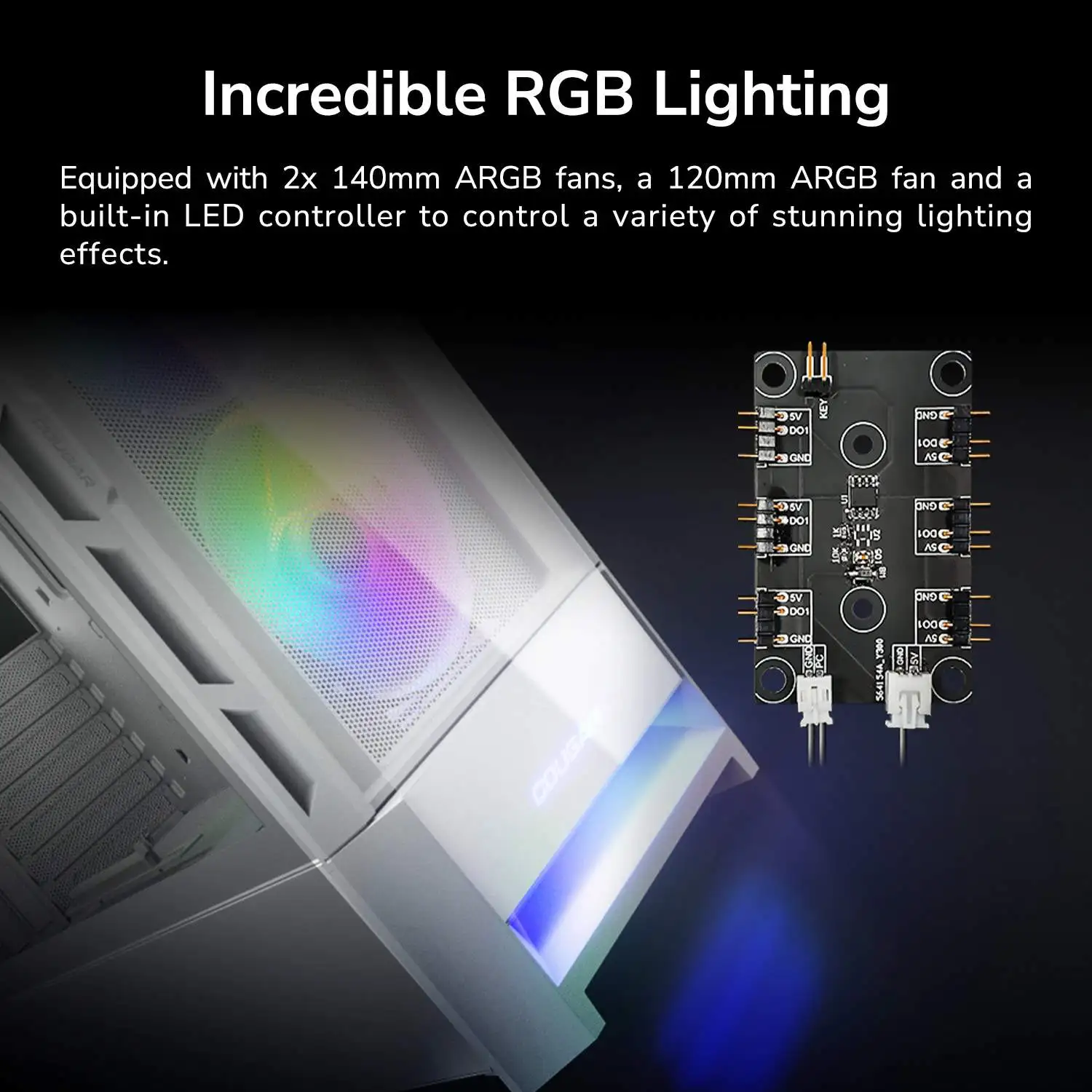

| Onboard Lighting System | Yes | |
| RGB Sync with M/B | Yes | |
| COUGAR Logo RGB Light | Yes | |

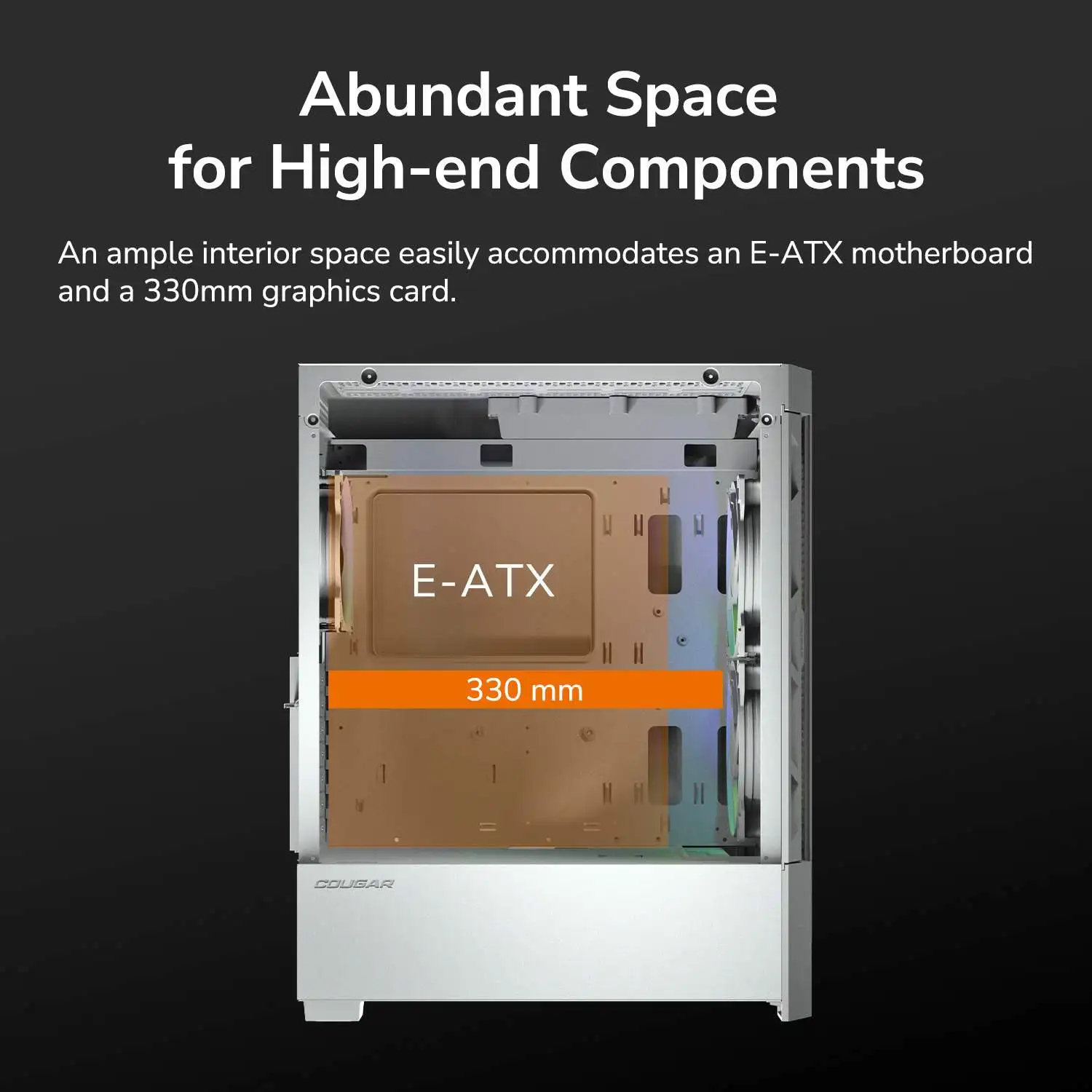

| Max. Graphics Card Length | 330 (mm) / 13 (in) | |

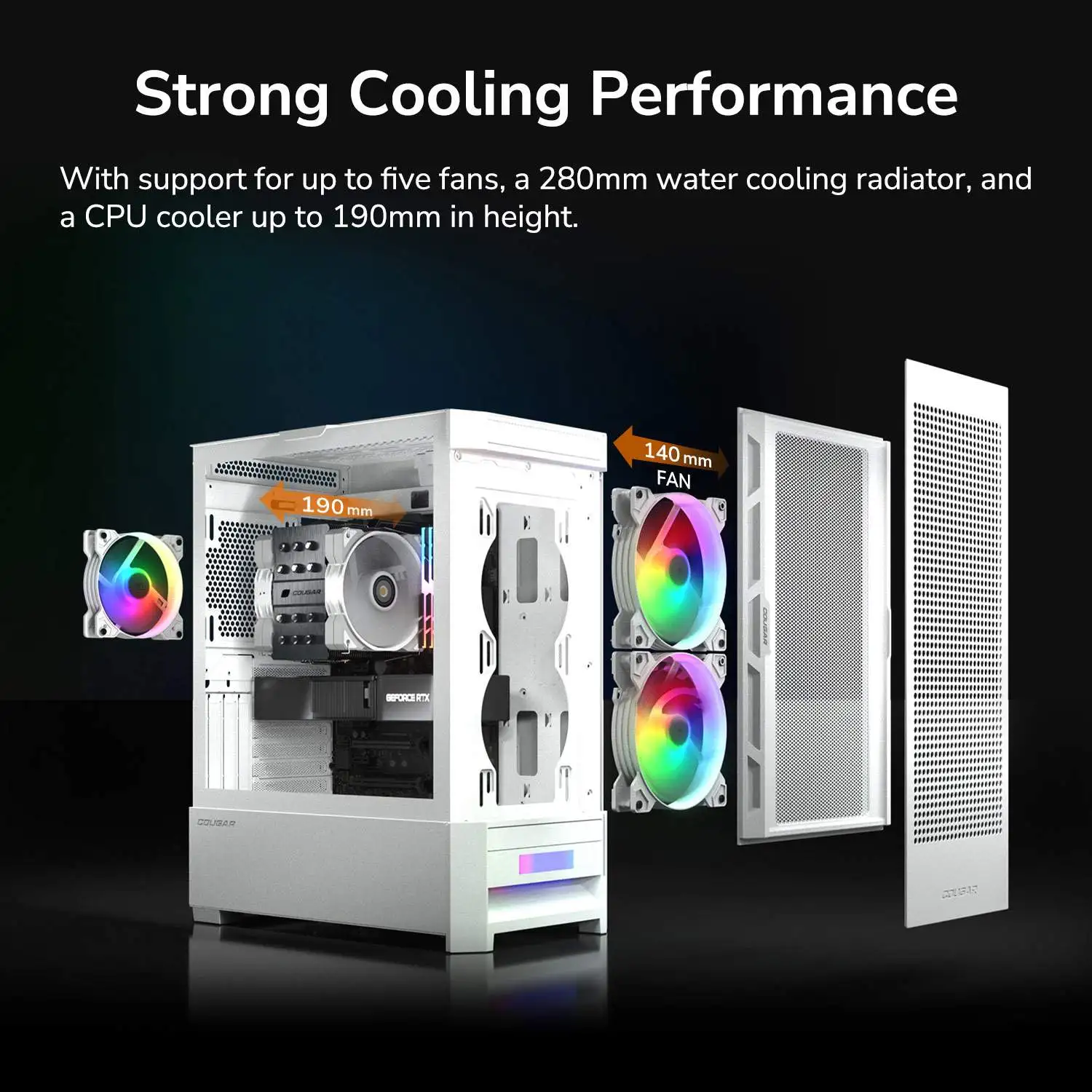

| Max. CPU Cooler Height | 190 (mm) / 7.5 (in) | |
| Max. PSU Length | 160 (mm) / 6.3 (in) |
