Through A Glass Brightly
There is no mystery without illumination; no function without form.

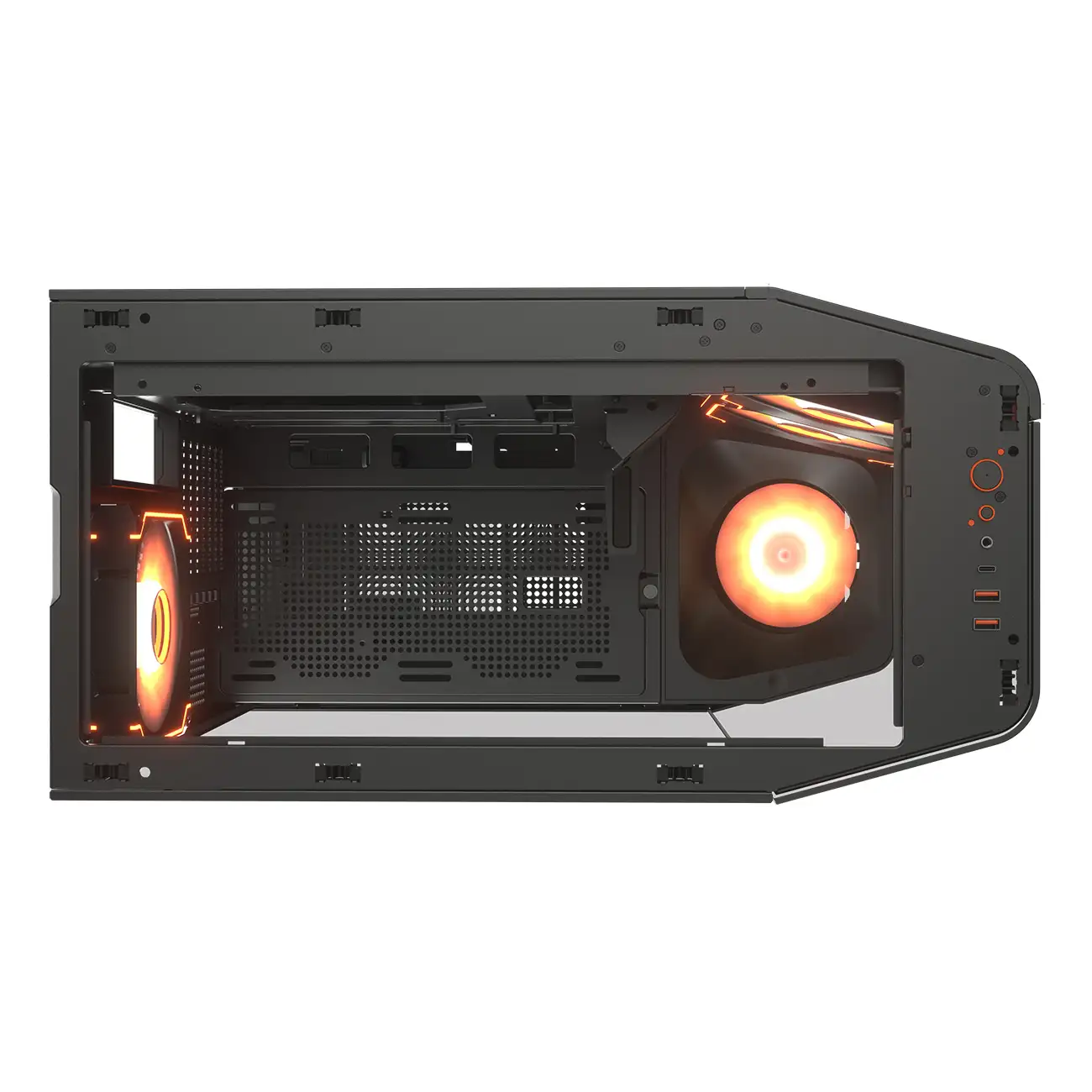

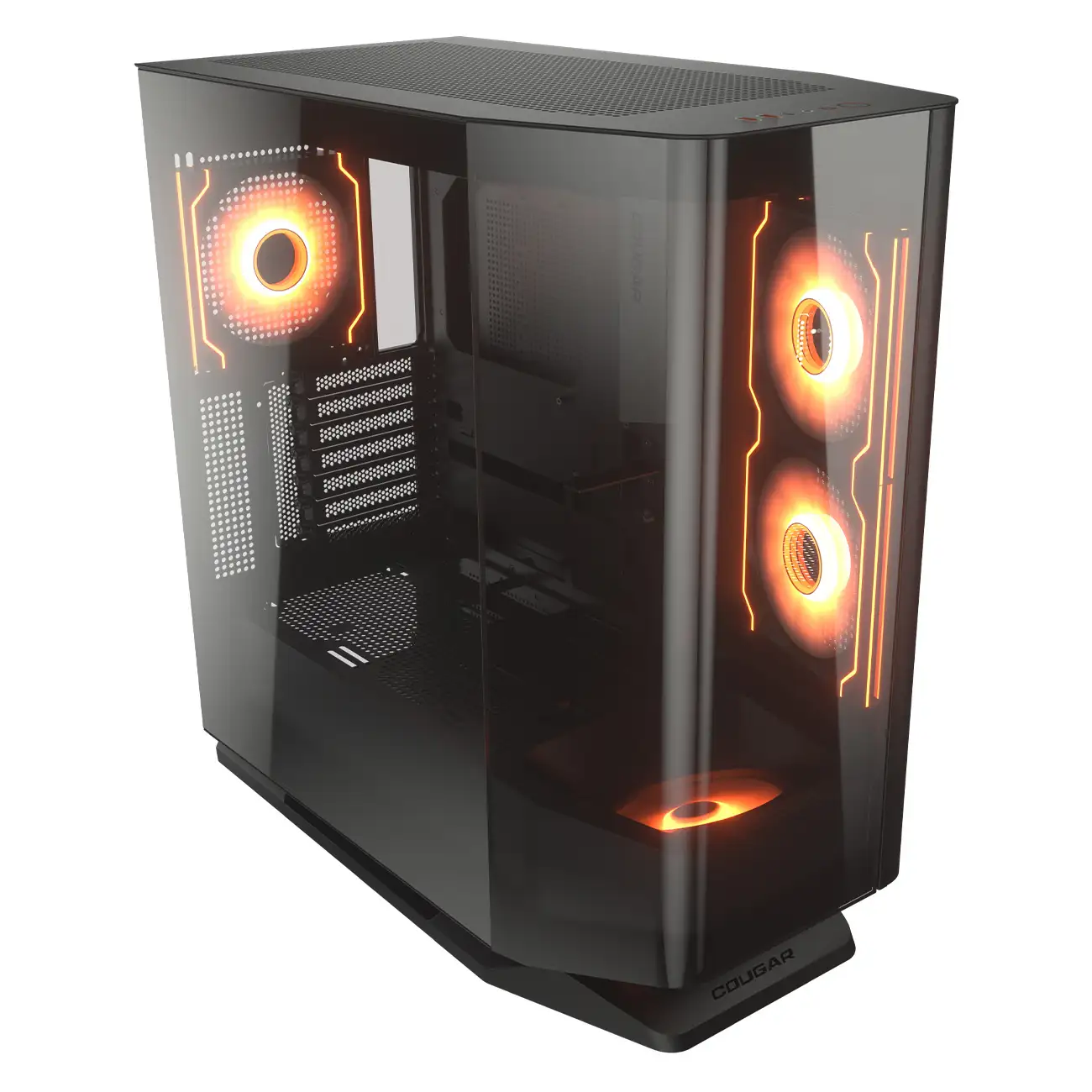

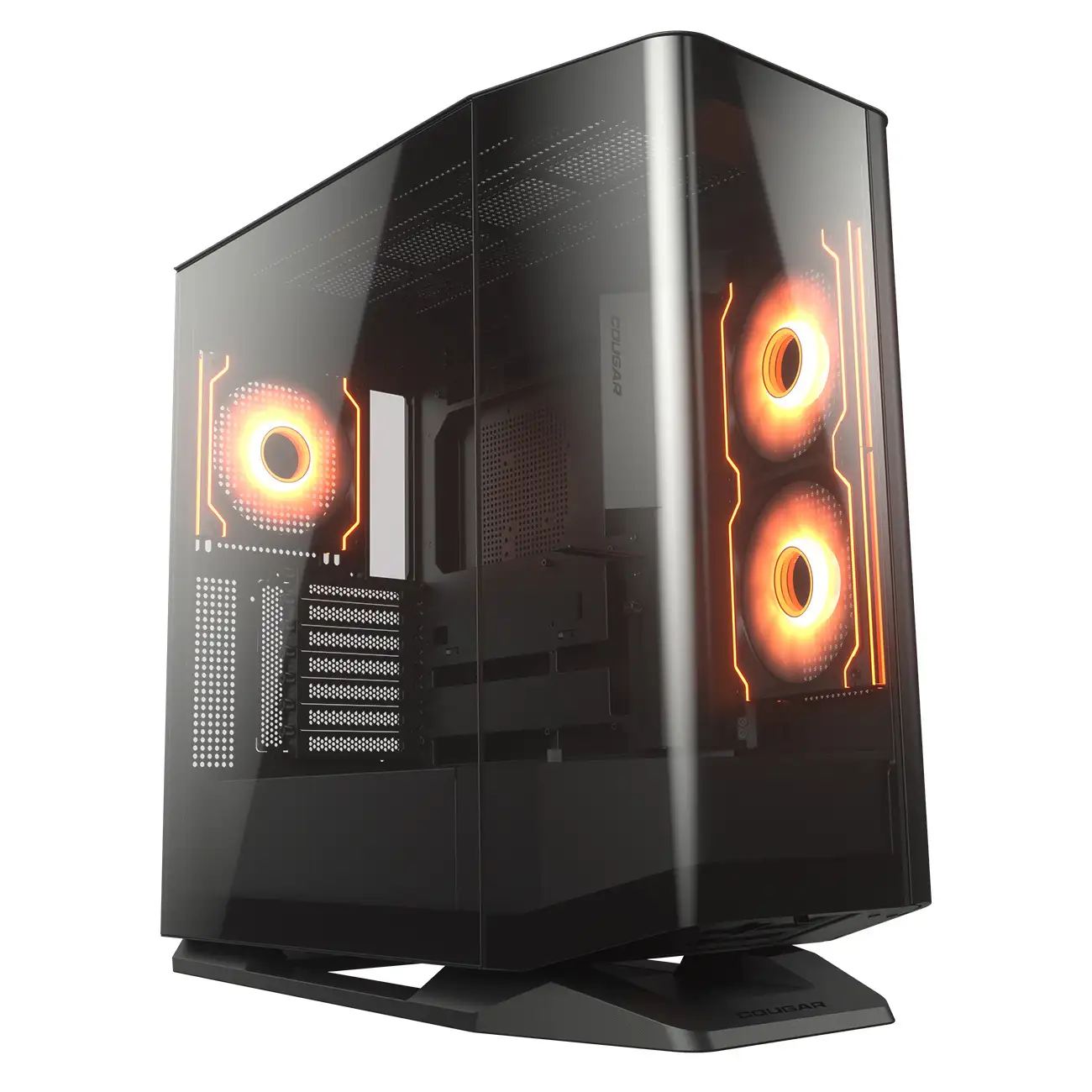

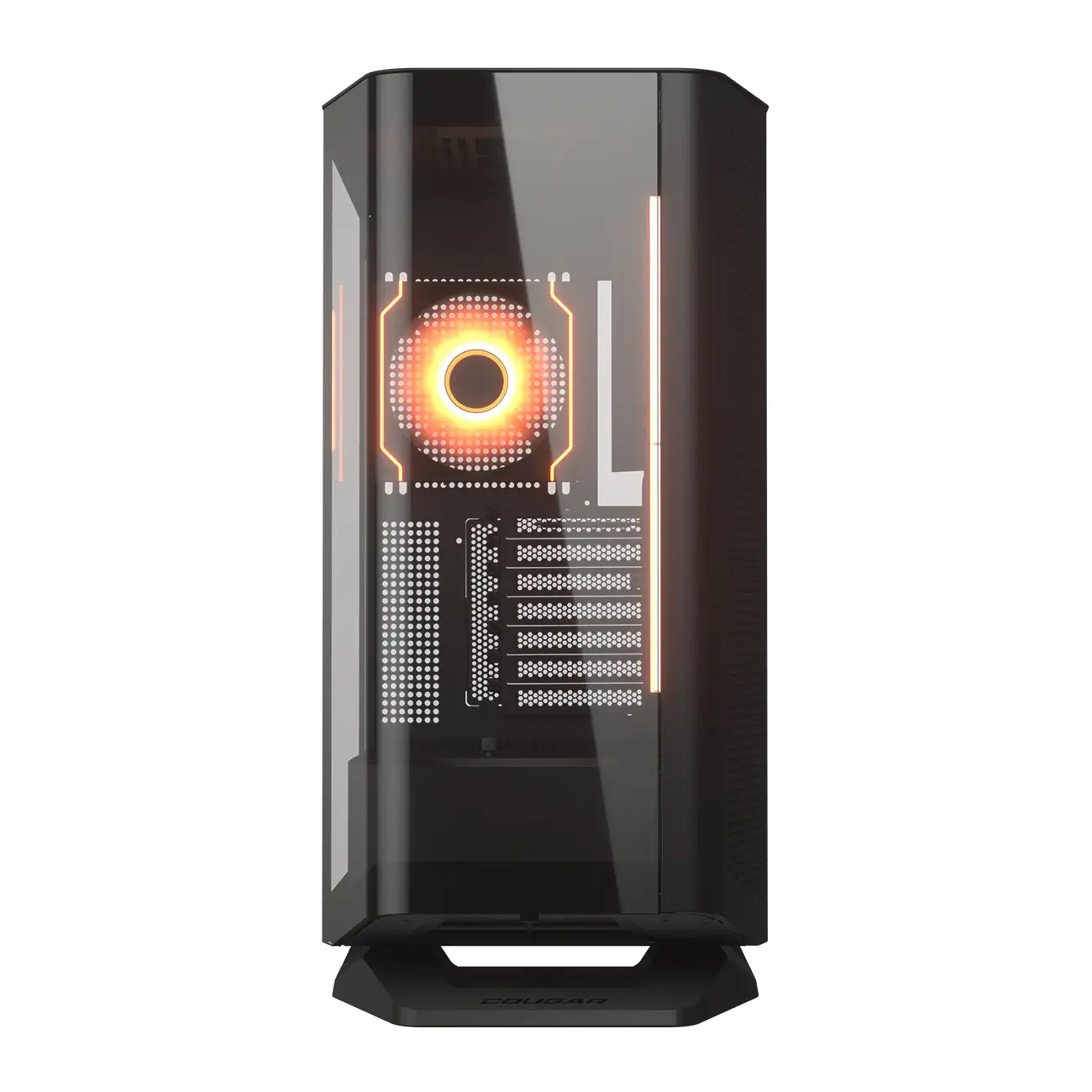

The prism-inspired, polyhedral perimeter of the FV270 RGB mid-tower formed from tempered curved glass provides an unrivaled panoramic interior view of your build in full glory, while innovative angled cooling fan placements revolutionize airflow dynamics.
Facilitating backwards cable management and future-proofed for extreme builds with capacity to spare for bleeding-edge motherboards and GPUs, the FV270 RGB is anything but another brick in the wall.
|
Product Name |
FV270 RGB / FV270 RGB(White) | |
| Case Form Factor | Mid Tower | |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX | |
| Dimensions (WxHxD) | 268 x 530 x 512 (mm) | |
| 10.6 x 20.9 x 20.2 (in) | ||

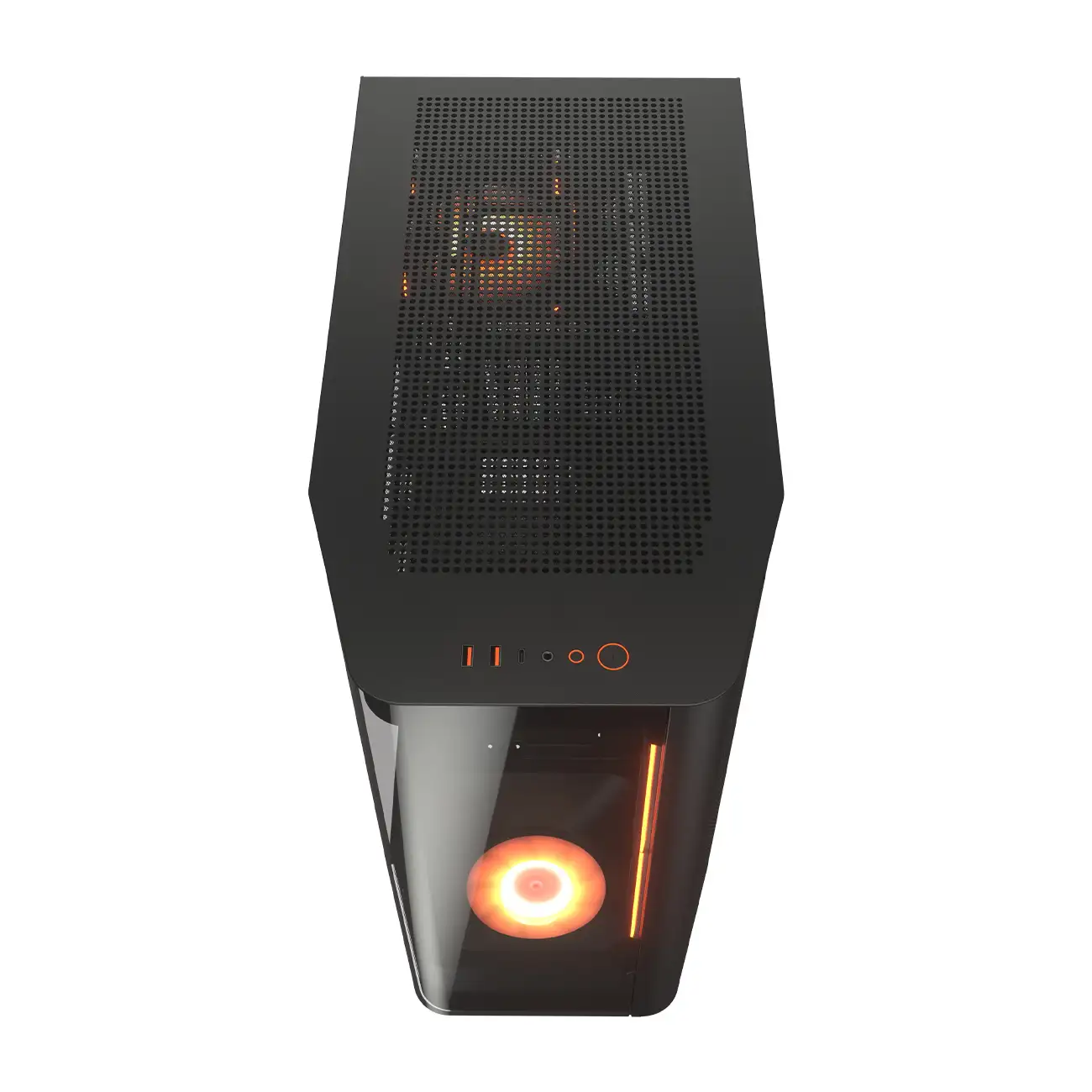

| I/O Panel | Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack, RGB Button | |
| 3.5″ Drive Bay | 2 | |

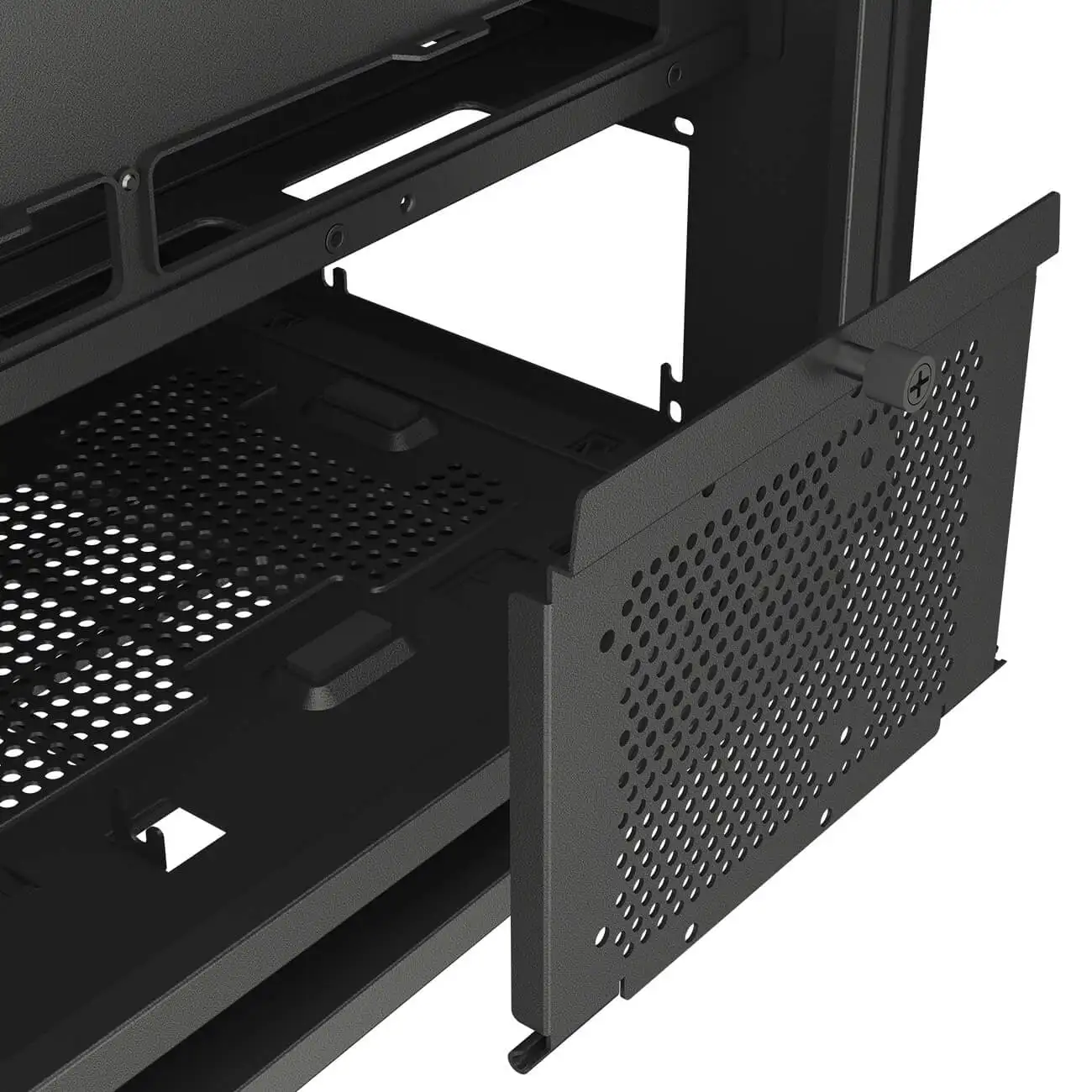

| 2.5″ Drive Bay | 2+2 (converted from 3.5″ drive bays) | |

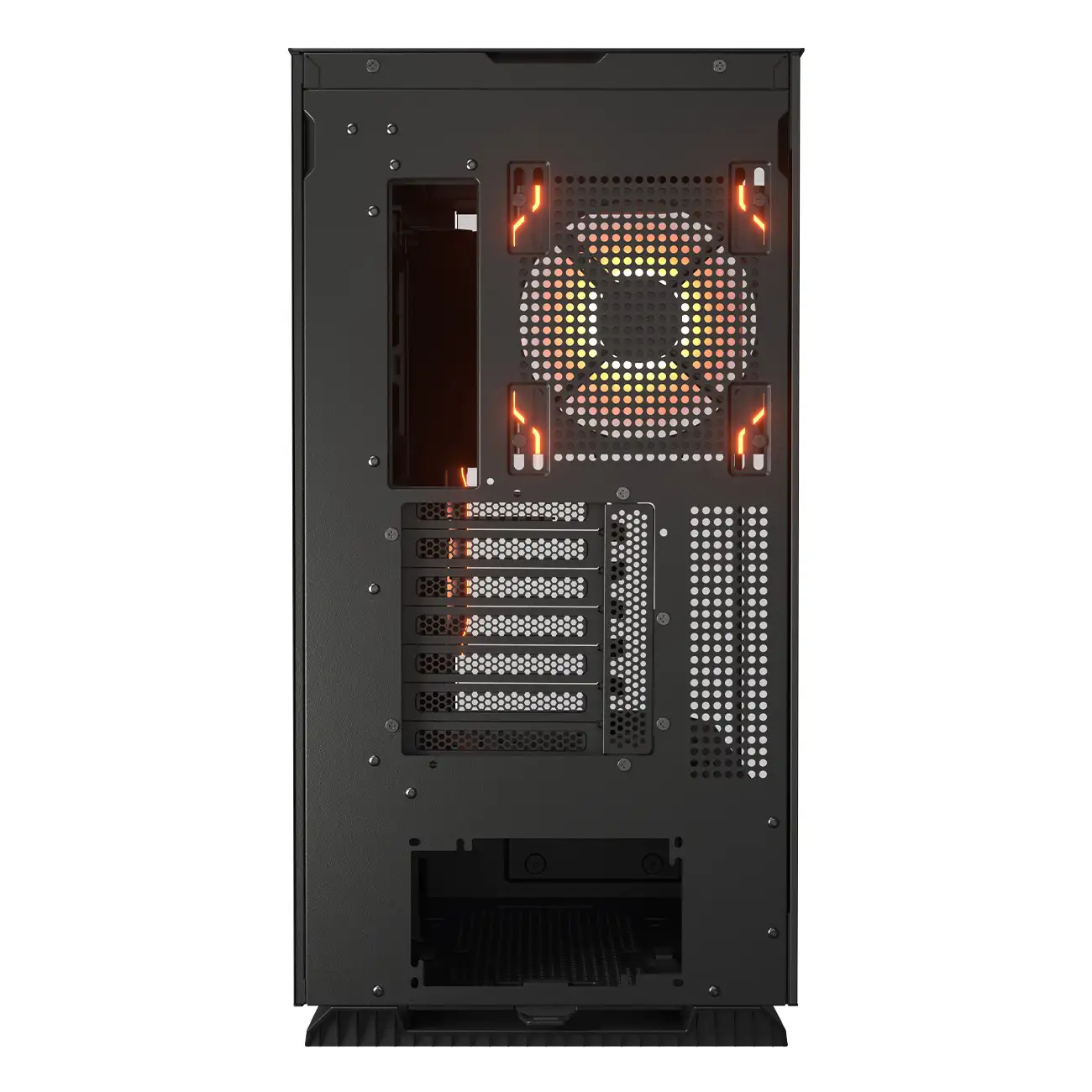

| Expansion Slots | 7 (horizontal slots can be converted into vertical slots) | |
| Vertical GPU Support | Yes | |
| Cooling Fan Support | Top | 120mm x 3 / 140mm x 2 |

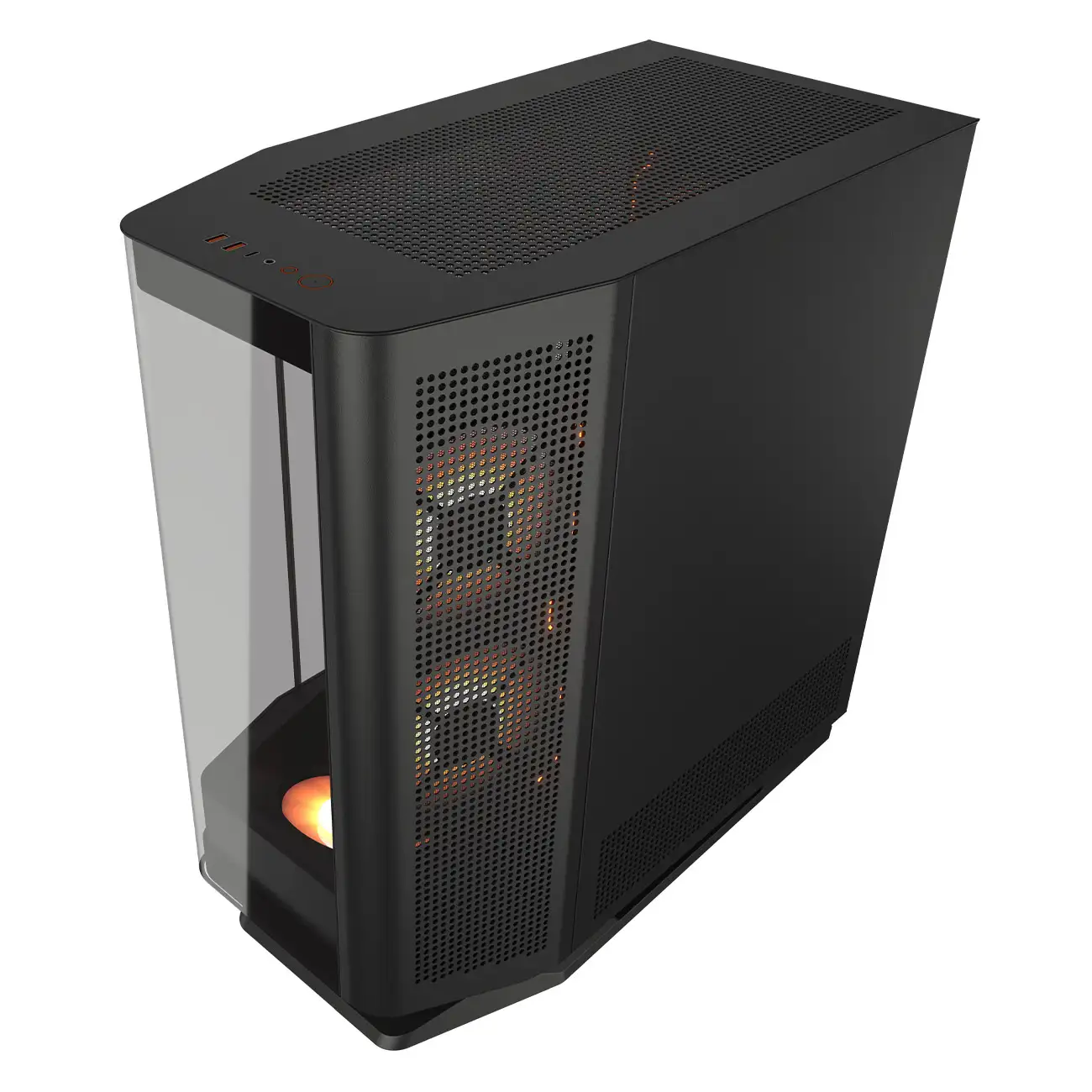

| M/B Side | 120mm x 2 / 140mm x 2 | |
| PSU Shroud | 120mm x 2 / 140mm x 2 | |
| Bottom | 120mm x 1 | |
| Rear | 120mm x 1 / 140mm x 1 | |

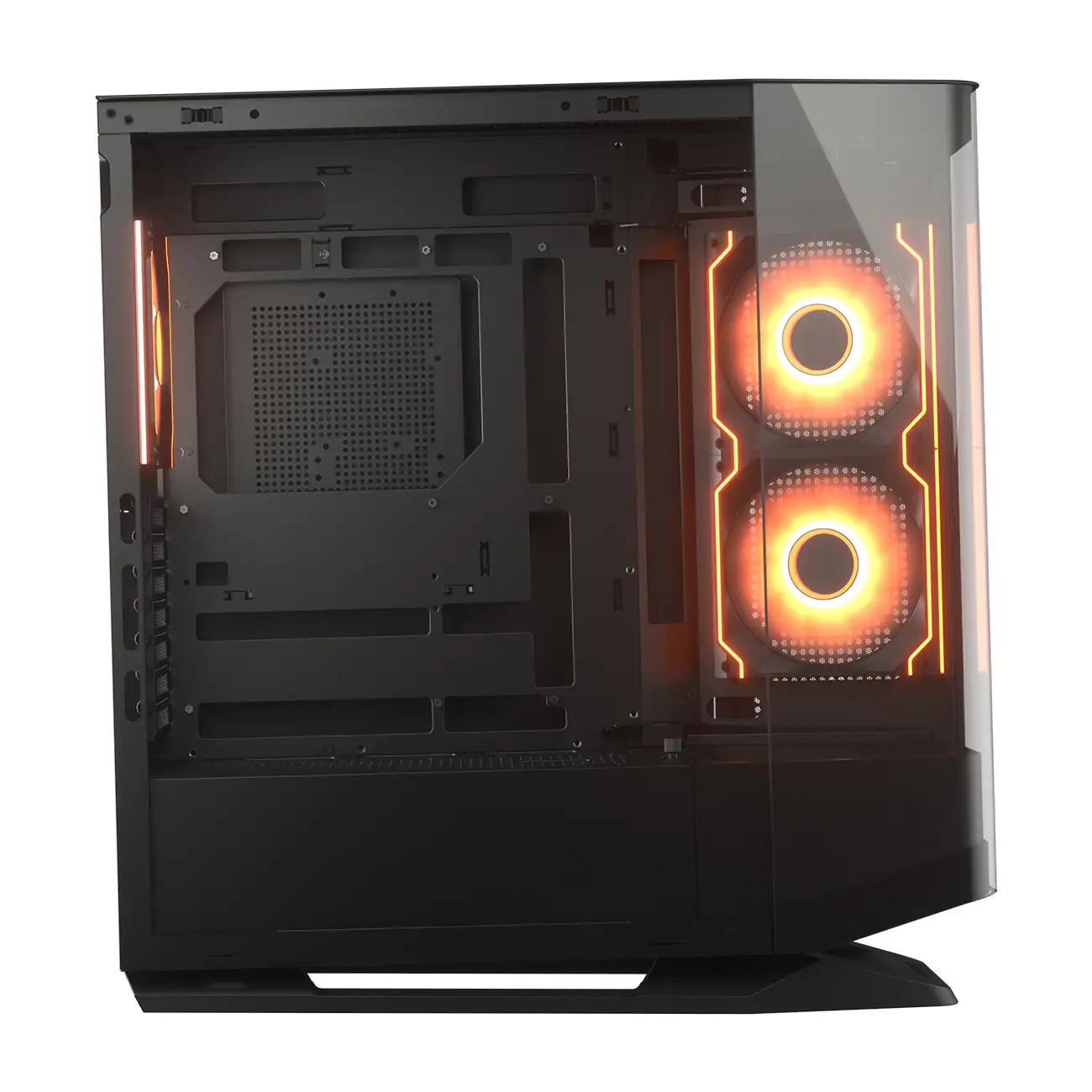

| Pre-installed Fans | M/B Side | 140mm Reversed ARGB PWM fan x 2 |

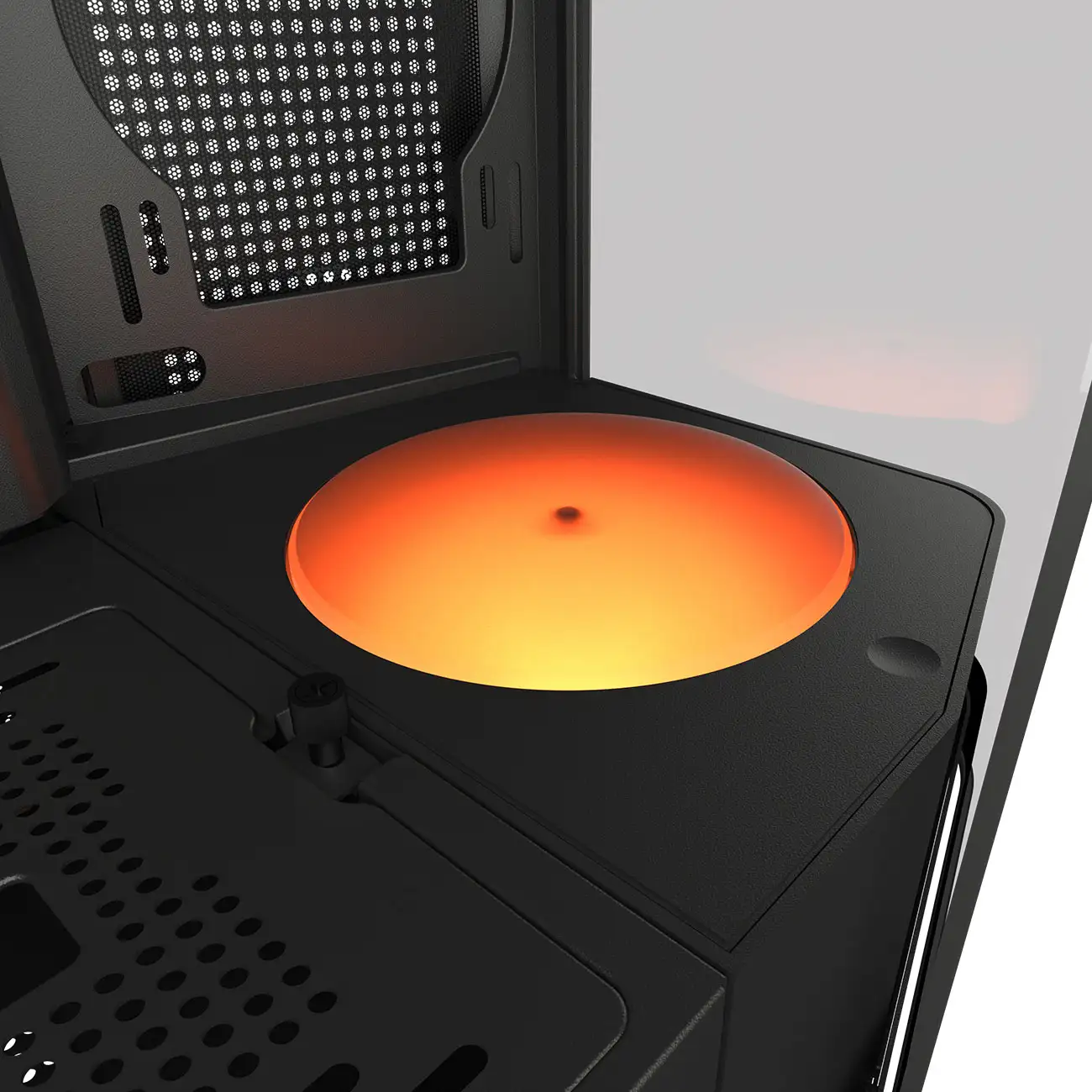

| Bottom | 120mm Reversed ARGB PWM fan x 1 | |
| Rear | 140mm ARGB PWM fan x 1 | |
| Speed | 500 (±200) – 1200 (±10%) RPM | |
| Connector | 5V 3 Pin (ARGB) / 4 Pin (Fan) | |
| Maximun Number of Fans | 9 | |
| Water Cooling Support | Top | 360mm / 280mm / 240mm / 140mm / 120mm |
| M/B Side | 280mm / 240mm / 140mm / 120mm | |
| PSU Shroud | 240mm / 120mm | |
| Bottom | – | |
| Rear | 140mm / 120mm | |
| PWM and RGB Hub Sync with M/B | Yes | |
| Max. Graphics Card Length | Horizontal | 420 (mm) / 16.5 (in) (Only fans at the M/B Side) |
| 330 (mm) / 13 (in) (Radiator with fans at the M/B Side) | ||
| Vertical | 450 (mm) / 17.7 (in) | |
| Max. CPU Cooler Height | 180 (mm) / 7.1 (in) | |
| Max. PSU Length | 250 (mm) / 9.8 (in) | |
