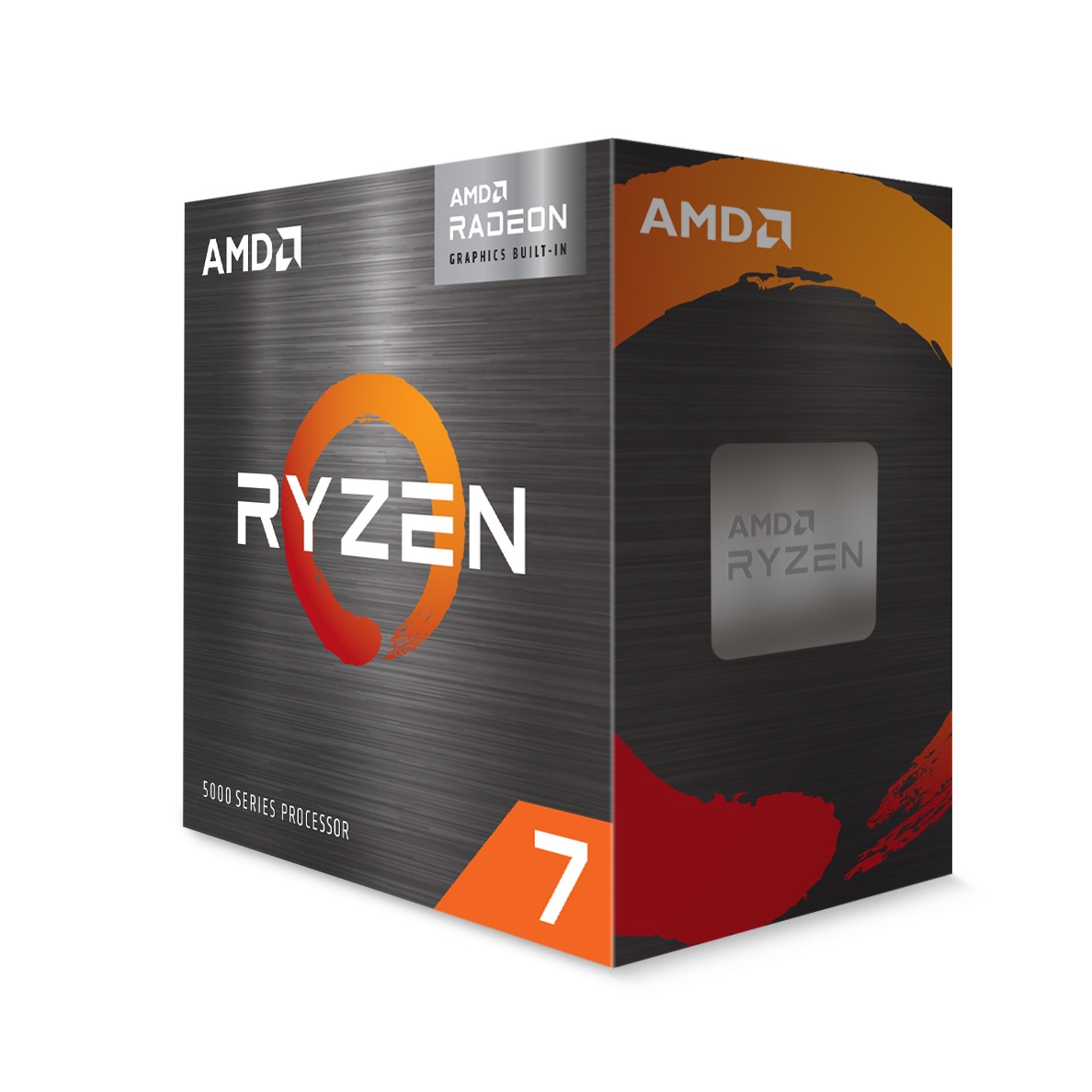

AMD Ryzen 7 5700G
| General Specifications | |
| Name | : AMD Ryzen™ 7 5700G |
| Family | : Ryzen |
| Series | : Ryzen 5000 Series |
| Form Factor | : Desktops, Boxed Processor |
| Former Codename | : Cezanne |
| Processor Architecture | : Zen 3 |
| # of CPU Cores | : 8 |
| # of Threads | : 16 |
| Max. Boost Clock | : Up to 4.6 GHz |
| Base Clock | : 3.8 GHz |
| L2 Cache | : 4 MB |
| L3 Cache | : 16 MB |
| Default TDP | : 65W |
| AMD Configurable TDP (cTDP) | : 45-65W |
| Processor Technology for CPU Cores | : TSMC 7nm FinFET |
| Unlocked for Overclocking | : Yes |
| CPU Socket | : AM4 |
| Thermal Solution (PIB) | : AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | : 95°C |
| Launch Date | : 4/13/2021 |
| *OS Support | : Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 11 – 64-Bit Edition |
| Connectivity | |
| PCI Express® Version | : PCIe® 3.0 |
| System Memory Type | : DDR4 |
| Memory Channels | : 2 |
| System Memory Specification | : Up to 3200 MT/s |
| Graphics Capabilities | |
| Graphics Model | : Radeon™ Graphics |
| Graphics Core Count | : 8 |
| Graphics Frequency | : 2000 MHz |
| Product IDs | |
| Product ID Boxed | : 100-100000263BOX |
| Product ID Tray | : 100-000000263 |
| Product ID MPK | : 100-100000263MPK |
