Be The Storm
Experience a perfect storm of cooling features with full ventilation, strategic filtering and targeted convection guidance.

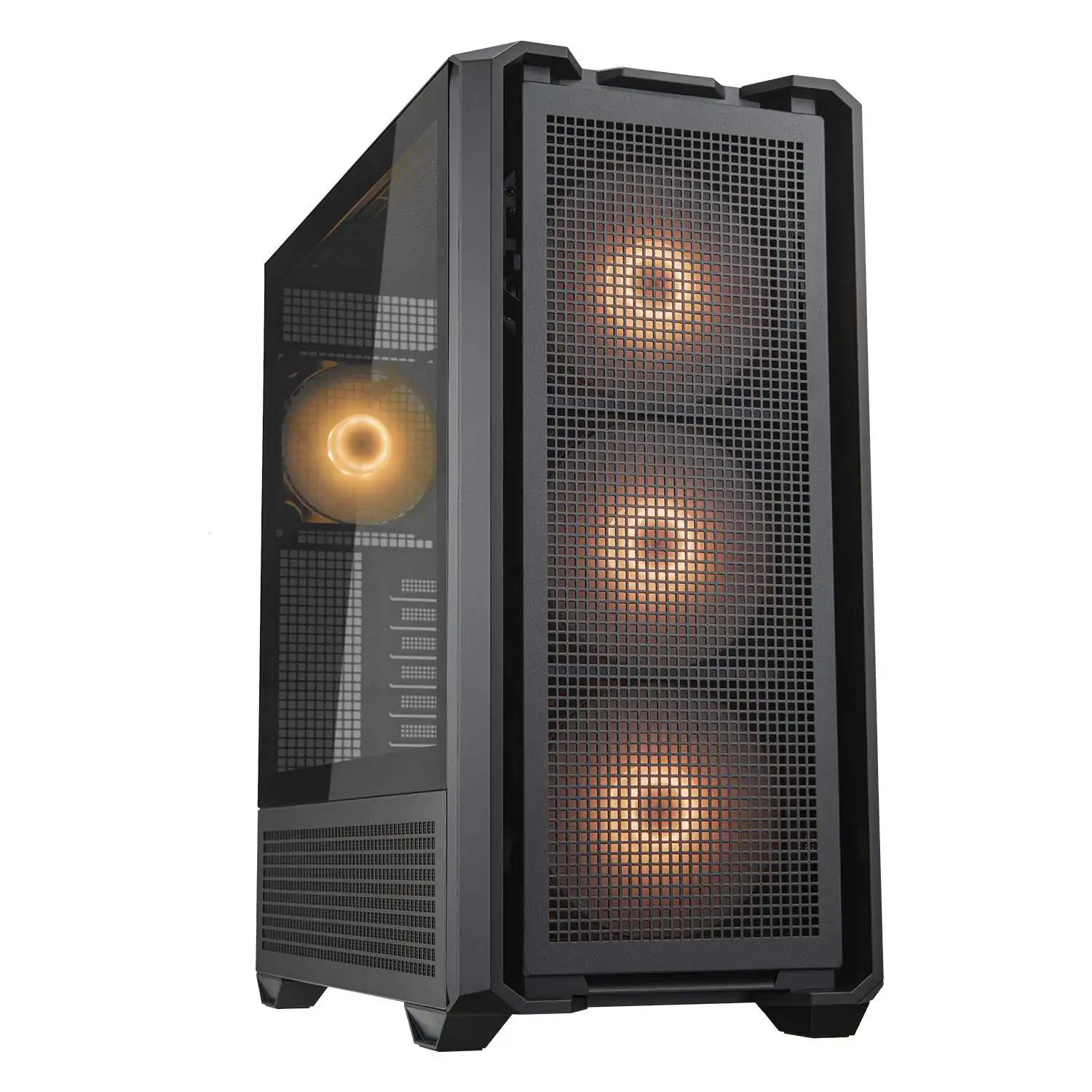

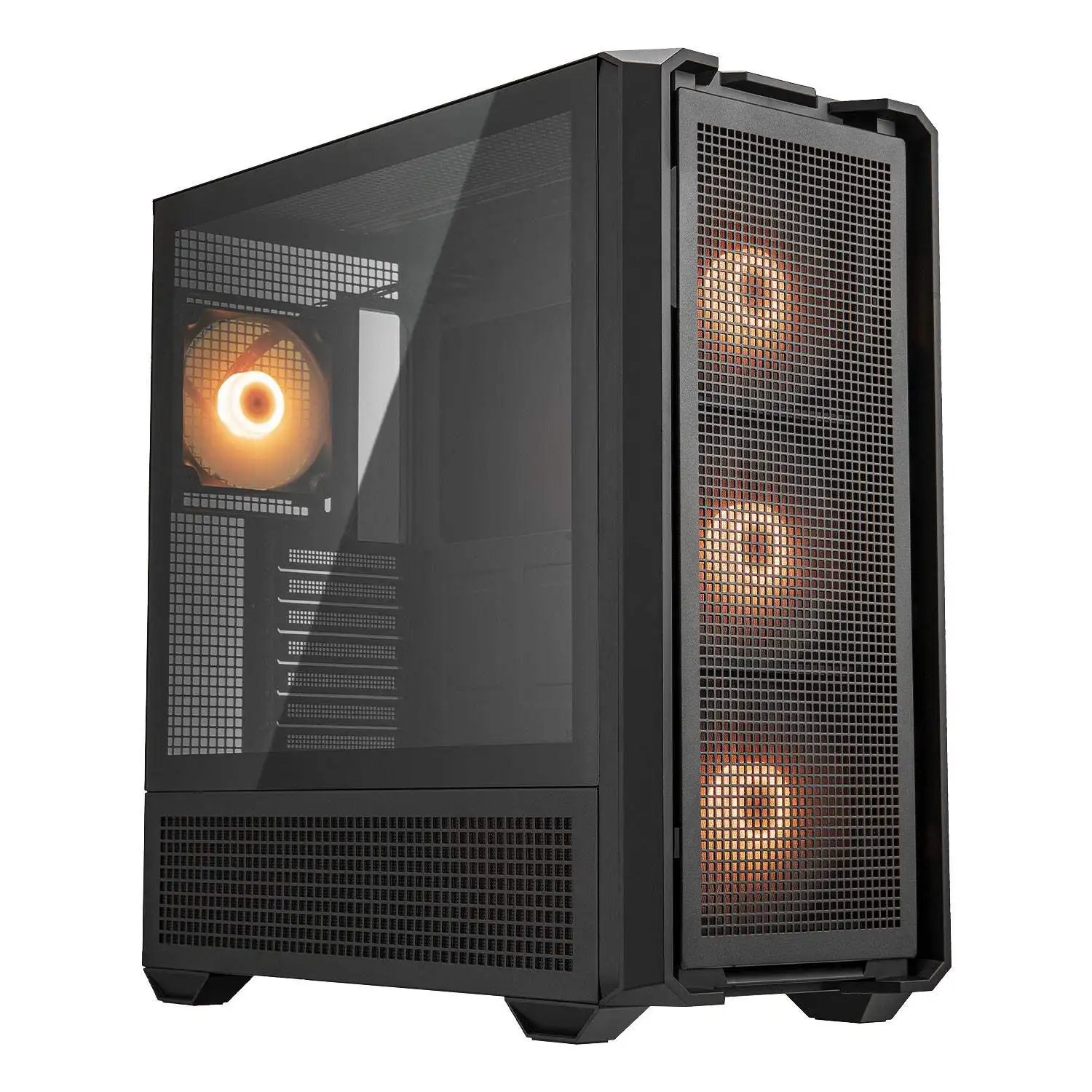

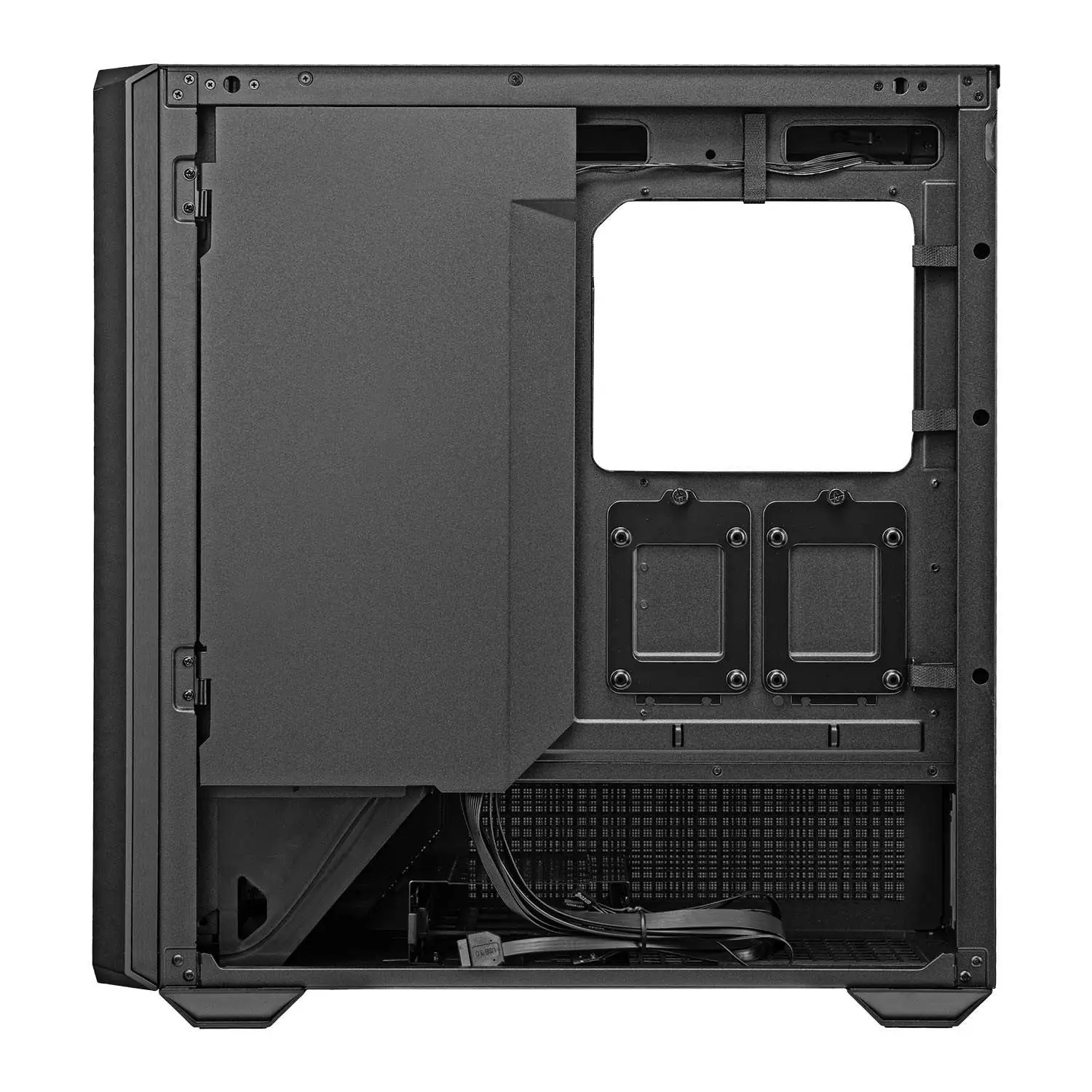

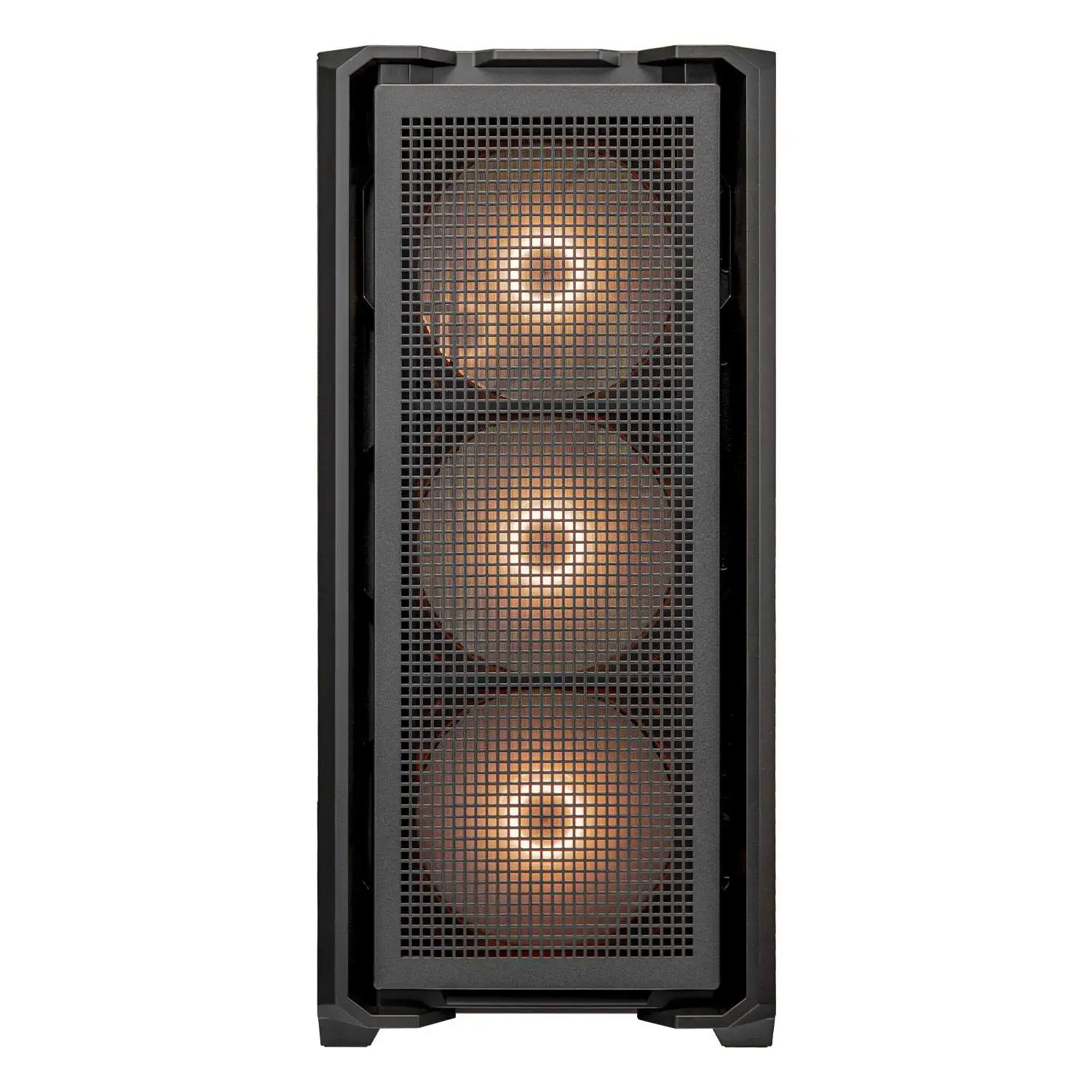

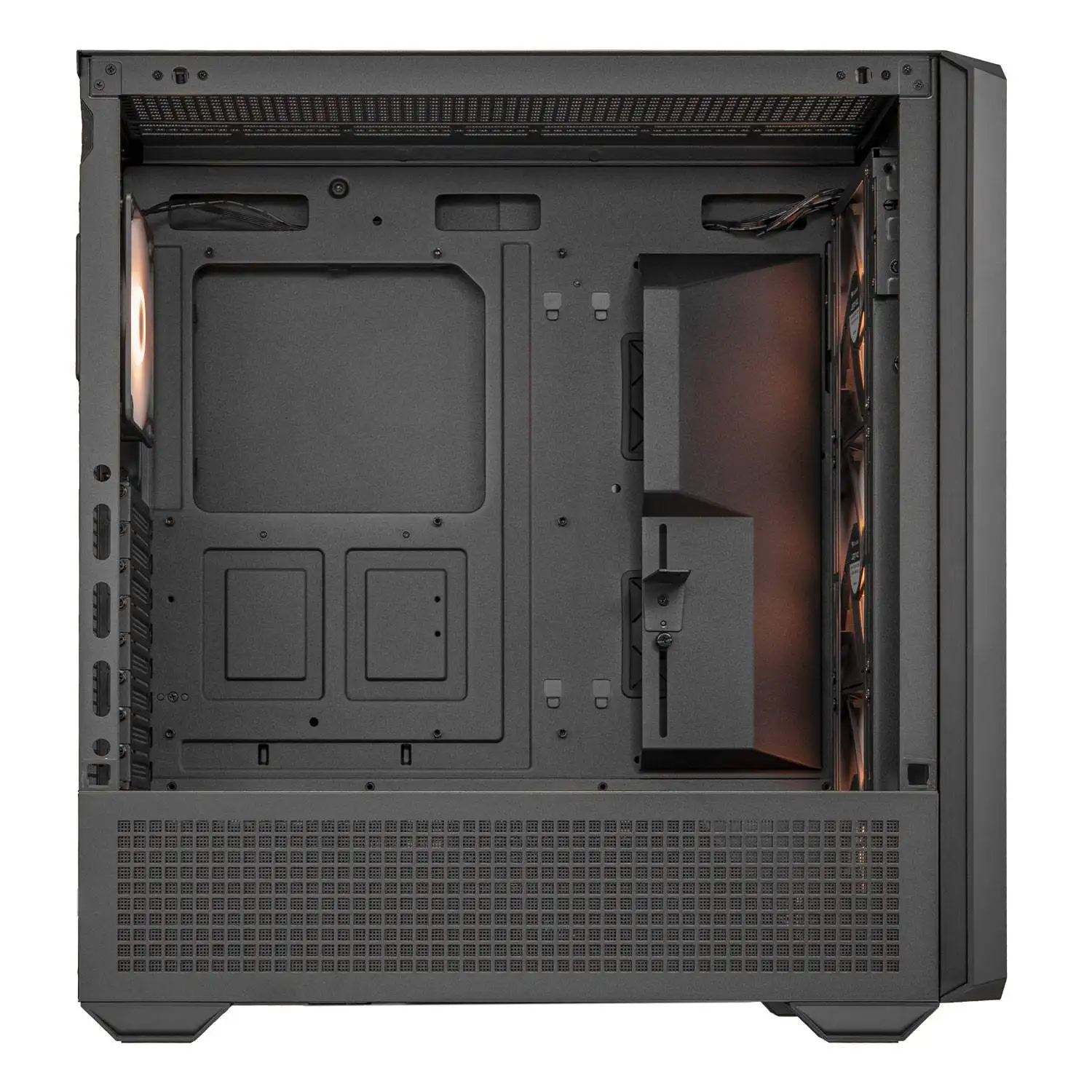

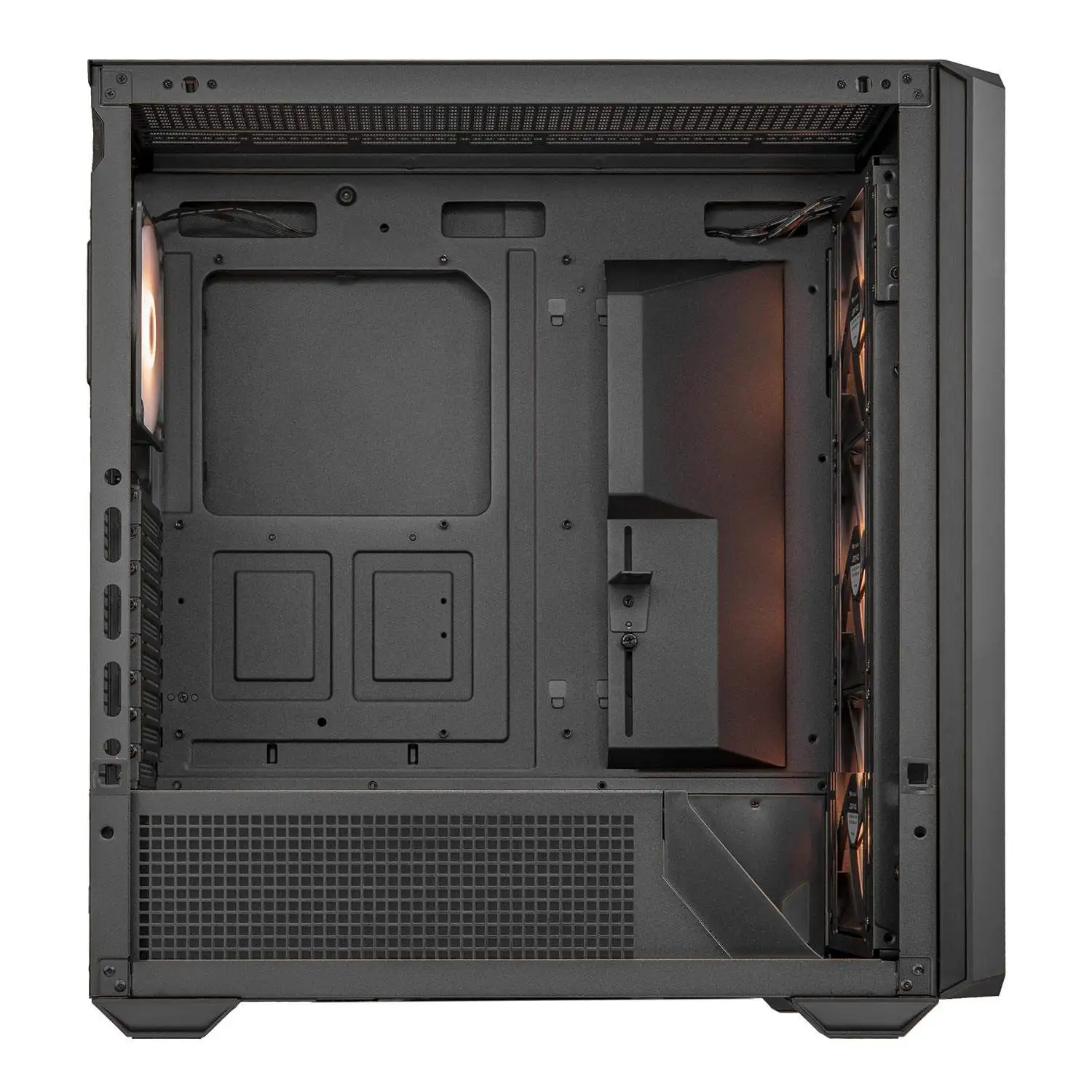

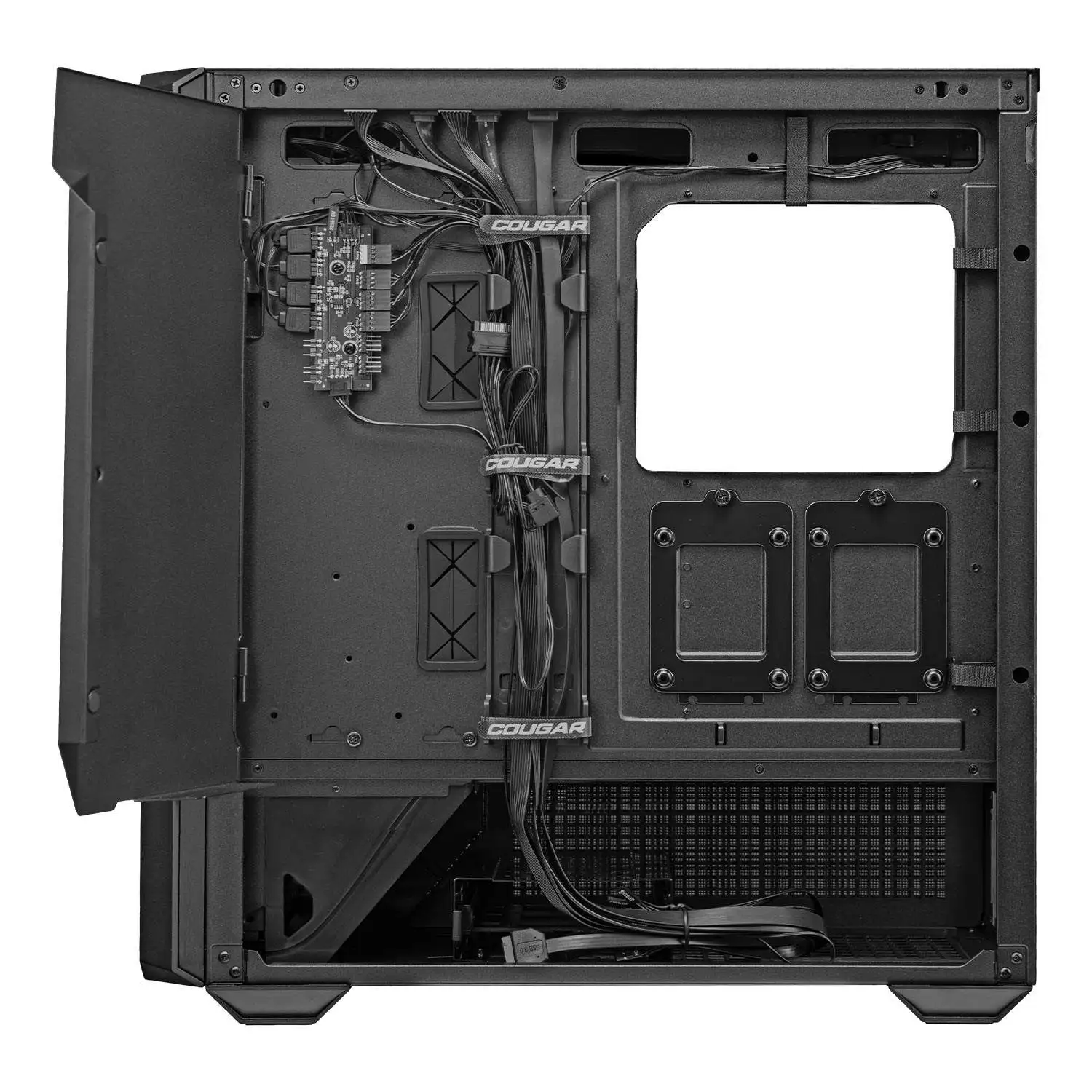

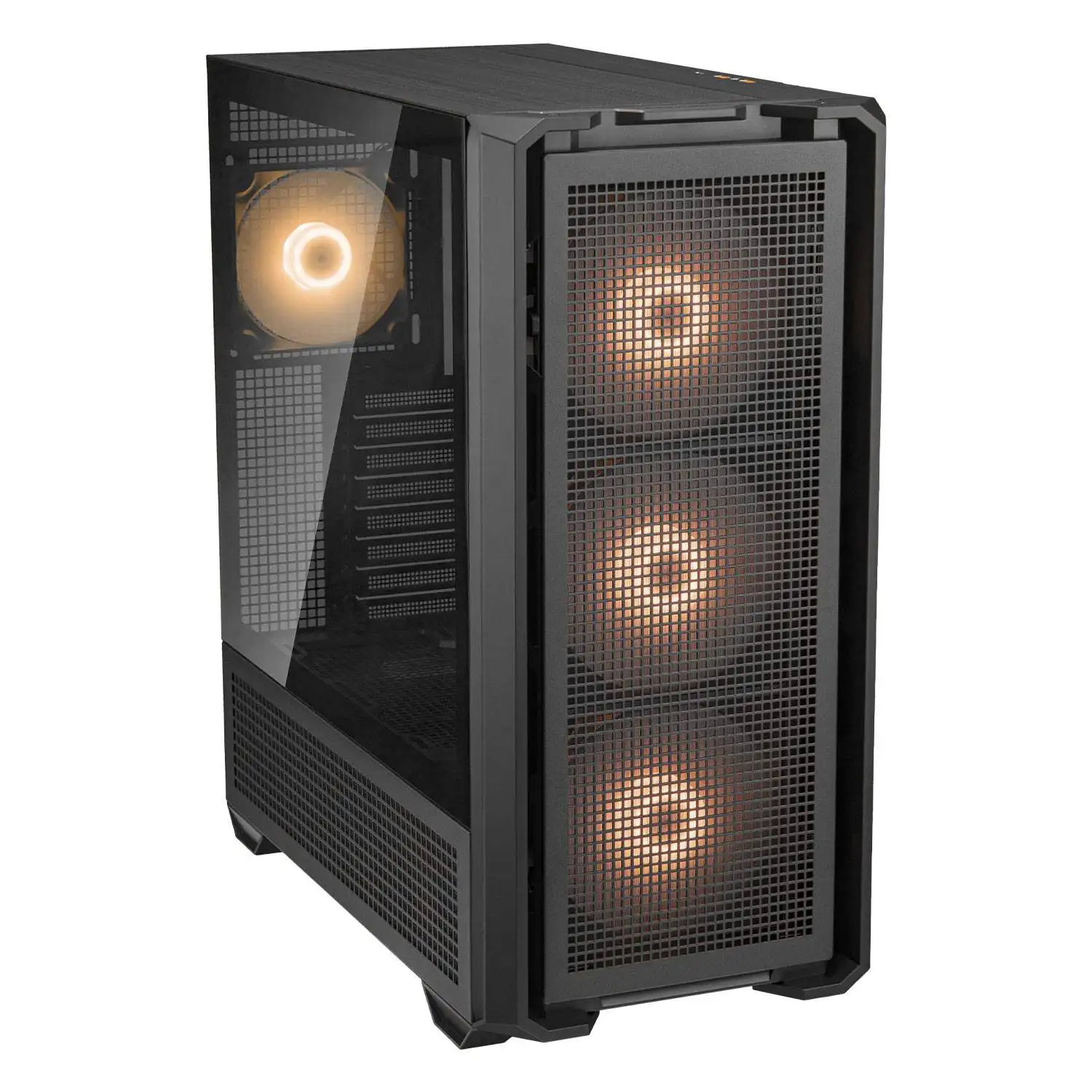

The MX600 RGB raises the bar for compact design: a future-proofed full-tower capacity, versatile GPU orientation, streamlines setup, and efficient cable management… all with just a mid-tower footprint
|
Product Name |
MX600 RGB / MX600 RGB (Black) | |
| Case Form Factor | Full Tower | |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX | |
| Dimensions (WxHxD) | 235 x 515 x 478 (mm) | |
| 9.3 x 20.3 x 18.8 (in) | ||
| I/O Panel | Type C Gen 2 (Key A 20-pin connector) x 1, USB 3.0 x 2, | |
| 4 Pole Headset Audio Jack, RGB Button | ||
| 3.5″ Drive Bay | 1 | |
| 2.5″ Drive Bay | 3+1 (converted from 3.5″ drive bays) | |
| Expansion Slots | Horizontal : 8 | |
| Vertical : 3 (install with a vertical bracket in the accessory kit) | ||
| Vertical GPU Support | Yes | |
| Cooling Fan Support | Front | 120mm x 3 / 140mm x 3 |
| Top | 120mm x 3 / 140mm x 3 | |
| PSU Shroud | 120mm x 2 | |
| Rear | 120mm x 1 / 140mm x 1 | |
| Pre-installed Fans | Front | 140mm ARGB fan x 3 |
| Rear | 120mm ARGB fan x 1 | |
| Speed | 140mm ARGB fan: 500-1200 ± 10% RPM | |
| 120mm ARGB fan: 500-1400 ± 10% RPM | ||
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) | |
| Maximun Number of Fans | 9 | |
| Water Cooling Support | Front | 360mm / 280mm / 240 mm / 140 mm / 120mm |
| Top | 360mm / 280mm / 240 mm / 140 mm / 120mm | |
| PSU Shroud | 240 mm / 120mm | |
| Rear | 140 mm / 120mm | |
| Transparent Left Panel | Yes | |
| RGB Sync with M/B | Yes | |
| Max. Graphics Card Length | 400 (mm) / 15.7 (in) | |
| Max. CPU Cooler Height | 180 (mm) / 7.1 (in) | |
| Max. PSU Length | 180 (mm) / 7.1 (in) |
